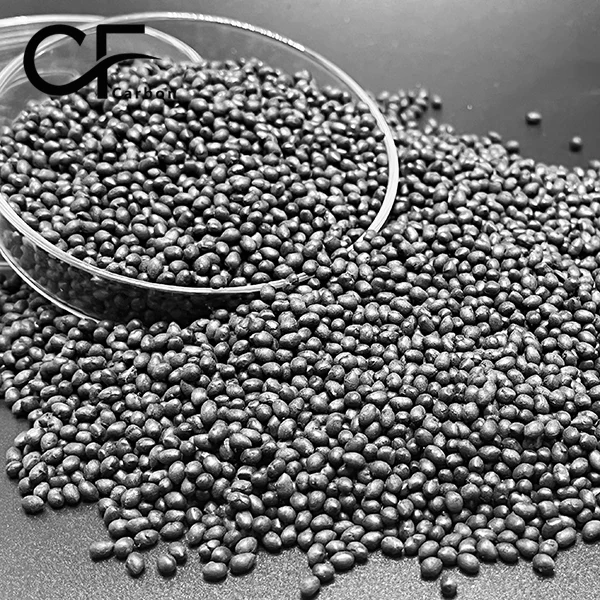

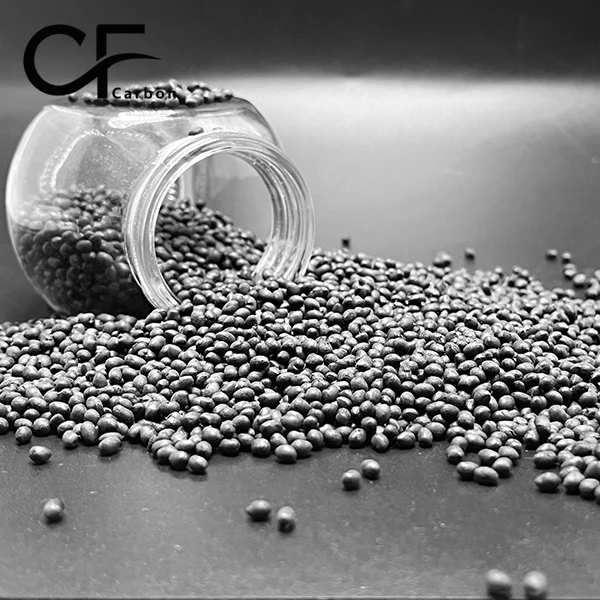

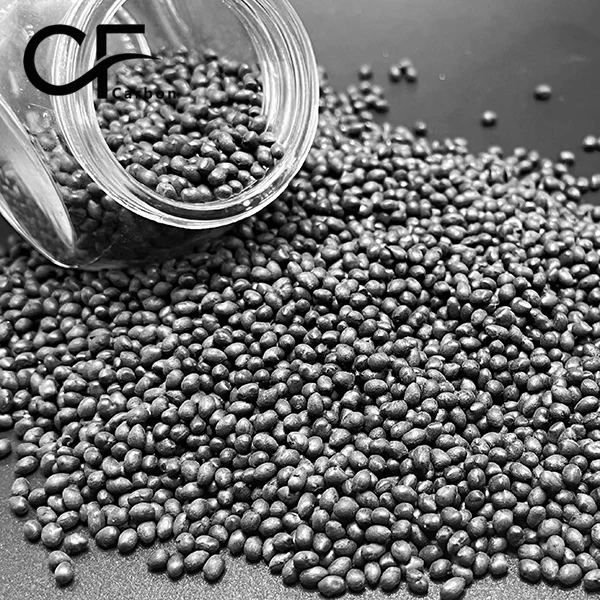

Thermoplastic Carbon Fiber Compounds PA6-CF20-BCA
1: 185 MPa tensile strength enhancement
2: 240 MPa flexural strength performance
3: 195°C heat deflection temperature rating
4: 0.3% low molding shrinkage rate
5: 25g/10min melt flow index
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free samples: ≤10kg
- MOQ: 100kg
- Port: Xiamen
- Model: PA6-CF-BCA2
- Fillers: SCF
I. PA6-CF20 Overview
PA6-CF20-BCA is a high-performance Thermoplastic Carbon Fiber Compound based on polyamide 6 (PA6) reinforced with 20% carbon fiber and modified with a special BCA additive. This composite formulation significantly enhances mechanical properties, dimensional stability, and processing flowability, making it particularly suitable for thin-walled and complex structural components.
II. PA6-CF20-BCA Key Properties
1. Excellent Strength and Stiffness Balance
Tensile strength 185 MPa, flexural strength 240 MPa, approximately 120% higher than pure PA6.
2. Good Heat Resistance
Heat deflection temperature reaches 195°C, meeting high-temperature requirements for most engineering applications.
3. Low Warpage and High Dimensional Accuracy
Molding shrinkage rate is only 0.3%, with dimensional variation controlled within ±0.05mm.
4. Excellent Processing Fluidity
Melt flow index reaches 25g/10min, suitable for complex thin-walled product molding.
III. Material Main Applications
This Thermoplastic Carbon Fiber Compound is widely used in automotive engine components, electronic connectors, industrial gears, sports equipment structural parts, and precision instrument housings.
IV. PA6-CF20-BCA in Automotive Electronic Connectors
A renowned automotive electronics supplier uses PA6-CF20-BCA to produce engine control unit connectors. While maintaining high strength and heat resistance, the material demonstrates excellent dimensional stability and surface quality, ensuring long-term reliability in high-temperature vibration environments, completely replacing previous PBT materials.
For more detailed information about this Thermoplastic Carbon Fiber Compound, please request our technical datasheet or contact us for samples and quotations. Please note that the final properties of carbon fiber reinforced materials may vary depending on matrix resin type, fiber content, and processing technology. We recommend comparative testing with similar materials based on your specific application needs to accurately evaluate the suitability of PA6-CF20 for your products. Materials from different manufacturers may exhibit variations in performance.
CFRTP VERSUS CFRP
1. CFRTP demonstrates significantly faster processing time (5 minutes) compared to CFRP (45 minutes), representing a 90% reduction in manufacturing duration. 2. In terms of recyclability, CFRTP outperforms CFRP by a large margin, scoring 9 on a 1-10 scale versus CFRP's score of 2. 3. CFRTP exhibits superior impact resistance (90 kJ/m²) compared to CFRP (65 kJ/m²), showing approximately 38% better performance in this category. 4. While CFRP has higher temperature resistance (220°C) than CFRTP (180°C), both materials maintain adequate thermal performance for most applications. 5. CFRTP offers greater design flexibility (rating of 90) compared to CFRP (rating of 60), providing more versatility in manufacturing and application scenarios.
CFRTP VS. METALS
1. CFRTP exhibits the lowest density (1.50 g/cm³) among all compared materials, significantly outperforming traditional metals like steel (7.85 g/cm³) and copper (8.96 g/cm³), and even surpassing aluminum (2.70 g/cm³) and aluminum alloy (2.80 g/cm³). 2. In terms of strength-to-weight ratio, CFRTP demonstrates superior performance at 120 kN·m/kg, more than doubling the ratio of aluminum alloy (68 kN·m/kg) and far exceeding steel (26 kN·m/kg) and copper (14 kN·m/kg). 3. While steel shows the highest stiffness (200 GPa), CFRTP (150 GPa) outperforms aluminum (70 GPa), aluminum alloy (72 GPa), and copper (110 GPa), offering a favorable balance of rigidity and lightweight properties. 4. CFRTP achieves the highest corrosion resistance rating (9 on a 1-10 scale), surpassing all other materials including aluminum alloy (8), aluminum (7), copper (6), and steel (3), making it ideal for corrosive environments.
Related Product
Toughened Grade PA6&PA...
Wear-resistant Plastic Part...
Thermoplastic CF Composites...
High Rigidity PA6 CF40 Ther...
Extrusion PA6 CF 30 For 3D ...
CF-R Thermoplastic Composit...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
