CF40 PC Plastics for Large Format 3D Printing Parts
1. 40% carbon fiber reinforced -Near-metallic strength
2. 155℃ HDT -50℃ higher than standard PC
3. 150MPa tensile strength -50% of aluminum’s strength
4. 0.2% max shrinkage -Ultra-low warpage
5. 60MPa layer strength -Superior interlayer bonding
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free samples: ≤10kg
- MOQ: 100kg
- Port: Xiamen
- Model: PC-CF-BCA4
- Fillers: SCF

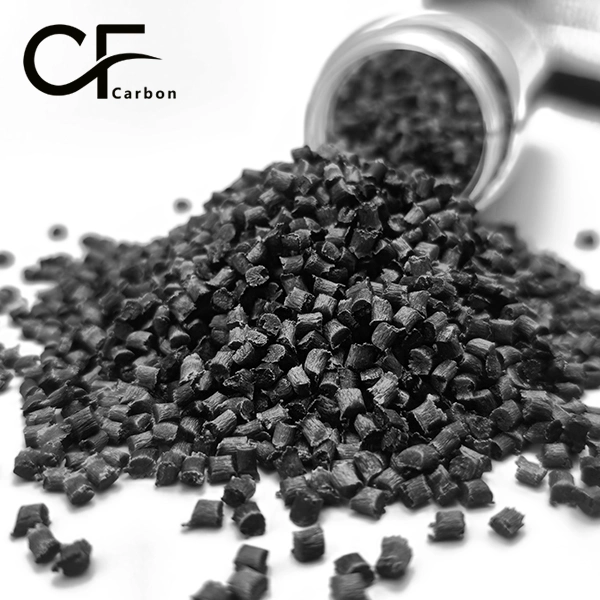

CF40 PC Plastics Overview
CF40 PC Plastics is a high-performance polycarbonate composite containing 40% carbon fiber, specifically developed for large-format 3D printed structural components. Through unique fiber alignment technology and interface modification processes, this material maintains PC’s excellent impact resistance while achieving near-metallic mechanical strength and outstanding dimensional stability, perfectly solving industry pain points like warping and weak interlayer bonding in large printed parts.
Key Performance Data Categories
-
Extreme Mechanical Properties
-
Tensile strength reaches 150MPa, achieving 50% of aluminum alloy strength
-
Flexural modulus 18-20GPa with anisotropy controlled below 5%
-
-
High-Temperature Stability
-
Heat deflection temperature (1.82MPa) 155℃, 50℃ higher than standard PC
-
Continuous service temperature range -40℃ to 140℃, suitable for harsh outdoor environments
-
-
Printing Process Advantages
-
Linear shrinkage rate only 0.1-0.2%, significantly reducing deformation risks
-
Interlayer bonding strength 60MPa, surpassing most FDM materials by over 30%
-
-
Functional Integration
-
Volume resistivity 5×10²Ω·cm, combining structural load-bearing with EMI shielding
-
Density 1.43g/cm³, reducing weight by 55-60% compared to metal structures
-
With optimized melt flow properties (MFR 15g/10min@300℃) and specialized 0.4-0.6mm granule morphology, CF40 PC Plastics has been successfully applied in direct printing of extra-large functional components like wind turbine blade molds.
Surface Resistivity Comparison
Conductors < 10⁵ Ω/sq. Antistatic Materials 10⁵ ~ 10¹² Ω/sq. Insulators > 10¹² Ω/sq. Static-Dissipative 10⁶ ~ 10¹¹ Ω/sq. *Key Influencing Factors Humidity: Increased moisture can reduce resistivity (e.g., in polymers). Temperature: Affects carrier mobility (↑ heat may lower semiconductor resistivity). Surface Contamination: Dust/oils alter readings significantly. Additives: Carbon black, metallic fillers can lower resistivity. *Applications Electronics: Antistatic materials (10⁶–10⁹ Ω/sq) prevent electrostatic discharge (ESD). Aerospace: Composites must control resistivity to avoid charge buildup. Medical Devices: Insulating materials (>10¹² Ω/sq) ensure patient safety. *Examples Polypropylene (PP): ~10¹⁶ Ω/sq (excellent insulator). Carbon Fiber Composites: 10³–10⁶ Ω/sq (static dissipation). ESD Flooring: 10⁶–10⁹ Ω/sq.
Get to Know Carbon Fibers
The table presents key performance data of carbon fiber grades. T300, with a tensile strength of 3530 MPa and a tensile modulus of 230 GPa, has a relatively low tensile elongation at break of 1.5% and a body density of 1.76 g/cm³. As the grade increases, for example, T700S shows an enhanced tensile strength of 4900 MPa compared to T300, while maintaining the same tensile modulus but with a higher elongation at break of 2.1%. T800S and T1000G both have a tensile modulus of 294 GPa, and their tensile strengths are 5880 MPa and 6370 MPa respectively. T1100G stands out with the highest tensile strength of 7000 MPa and a tensile modulus of 324 GPa. Generally, with the increase in product grade, the tensile strength and modulus tend to rise, while the density remains relatively stable around 1.8 g/cm³.
How to Buy?
If you want to obtain information such as product specifications, performance, and price, choose a suitable product according to your own needs. Meanwhile, you can ask the manufacturer to provide samples for testing to ensure that the material meets your usage requirements. If you are interested in purchasing this composite material, please contact the manufacturer Carbon (Xiamen) New Material directly.
Related Product
Good Strength PC CF40 for C...
Carbon Fiber Polycarbonate ...
PC-CF10 high stress applica...
PC CF30 Raw Materials for F...
High-Performance PP-CF60 Ca...
PC-CF30 Is 3X Stiffer Than ...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
