FR V1 V2 Nylon CF Plastic Pellets FR-PA6&PA66-CF30 Raw Materials
1: V-1/V-2 flame retardant rating.
2: Tensile strength reaches 200 MPa.
3: Flexural modulus exceeds 12 GPa.
4: Heat deflection temperature 210°C.
5: Limiting Oxygen Index over 28%.
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free samples: ≤10kg
- MOQ: 100kg
- Port: Xiamen
- Model: PA6&PA66-CF-BCT2
- Fillers: SCF
I. Material Overview

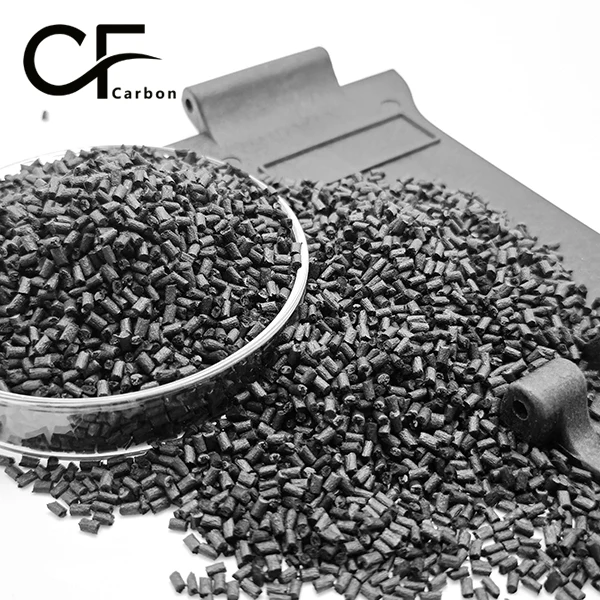

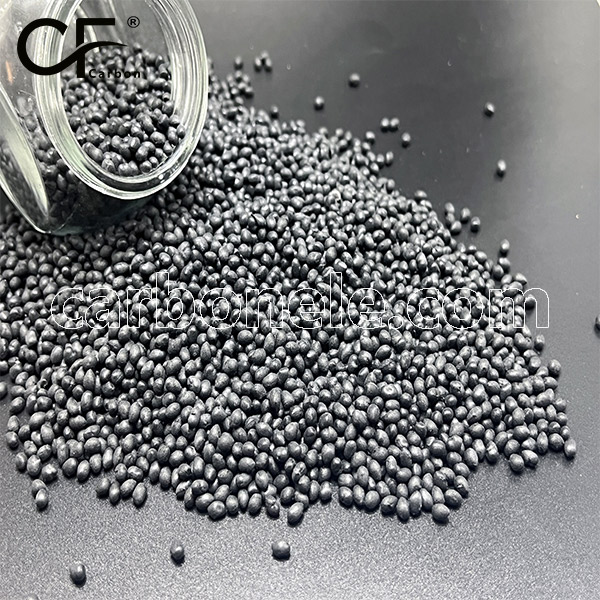

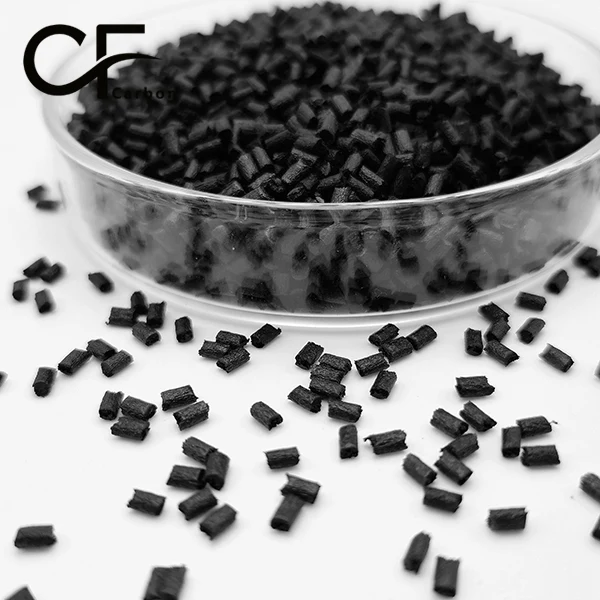

FR V1 V2 Nylon CF is a flame-retardant reinforced composite material composed of FR-PA6&PA66-CF30 Raw Materials nylon matrix, 30% carbon fiber, and a specialized flame retardant system. This material not only offers excellent mechanical properties but also achieves V-1/V-2 flame resistance ratings, providing reliable fire safety while maintaining high strength and rigidity.
II. Key Properties of FR V1 V2 Nylon CF Material
1. Excellent Flame Retardancy
The material is certified V-1/V-2 with a Limiting Oxygen Index (LOI) exceeding 28%, effectively reducing fire risks.
2. High Mechanical Strength and Rigidity
FR-PA6&PA66-CF30 Raw Materials achieve a tensile strength of 200 MPa and a flexural modulus over 12 GPa, outperforming standard flame-retardant materials.
3. Good Heat Resistance
The heat deflection temperature (HDT @1.82MPa) reaches 210°C, maintaining structural stability in high-temperature environments.
4. Superior Electrical Insulation
This FR V1 V2 Nylon CF material exhibits high volume resistivity, making it suitable for electrical applications.
III. Primary Applications
This composite is widely used in applications requiring flame retardancy and high strength, including electronic and electrical components, automotive electrical systems, aerospace interior parts, industrial equipment housings, and new energy equipment components.
IV. Application of FR V1 V2 Nylon CF in EV Battery Modules
In a branded electric vehicle’s battery management system housing, protective covers made from FR-PA6&PA66-CF30 Raw Materials successfully replaced metal components. This FR V1 V2 Nylon CF part not only meets stringent flame retardancy requirements but also provides excellent mechanical protection and electromagnetic shielding properties. Its lightweight characteristics contributed to a 15% reduction in overall vehicle weight, while passing rigorous vibration and thermal shock tests.
For detailed technical data sheets, quotations, or further technical clarification, please feel free to contact us. Please note that the properties of carbon fiber-reinforced thermoplastic composites may vary depending on the matrix resin type, carbon fiber content and specifications, and manufacturing processes. The advantages of a specific material should be accurately evaluated through comparative testing with actual application requirements and other specific carbon fiber-reinforced plastics. Furthermore, products from different suppliers may have varying performance emphases.
Surface Resistivity Comparison
Conductors < 10⁵ Ω/sq. Antistatic Materials 10⁵ ~ 10¹² Ω/sq. Insulators > 10¹² Ω/sq. Static-Dissipative 10⁶ ~ 10¹¹ Ω/sq. *Key Influencing Factors Humidity: Increased moisture can reduce resistivity (e.g., in polymers). Temperature: Affects carrier mobility (↑ heat may lower semiconductor resistivity). Surface Contamination: Dust/oils alter readings significantly. Additives: Carbon black, metallic fillers can lower resistivity. *Applications Electronics: Antistatic materials (10⁶–10⁹ Ω/sq) prevent electrostatic discharge (ESD). Aerospace: Composites must control resistivity to avoid charge buildup. Medical Devices: Insulating materials (>10¹² Ω/sq) ensure patient safety. *Examples Polypropylene (PP): ~10¹⁶ Ω/sq (excellent insulator). Carbon Fiber Composites: 10³–10⁶ Ω/sq (static dissipation). ESD Flooring: 10⁶–10⁹ Ω/sq.
Get to Know Carbon Fibers
The table presents key performance data of carbon fiber grades. T300, with a tensile strength of 3530 MPa and a tensile modulus of 230 GPa, has a relatively low tensile elongation at break of 1.5% and a body density of 1.76 g/cm³. As the grade increases, for example, T700S shows an enhanced tensile strength of 4900 MPa compared to T300, while maintaining the same tensile modulus but with a higher elongation at break of 2.1%. T800S and T1000G both have a tensile modulus of 294 GPa, and their tensile strengths are 5880 MPa and 6370 MPa respectively. T1100G stands out with the highest tensile strength of 7000 MPa and a tensile modulus of 324 GPa. Generally, with the increase in product grade, the tensile strength and modulus tend to rise, while the density remains relatively stable around 1.8 g/cm³.
How to Buy?
If you want to obtain information such as product specifications, performance, and price, choose a suitable product according to your own needs. Meanwhile, you can ask the manufacturer to provide samples for testing to ensure that the material meets your usage requirements. If you are interested in purchasing this composite material, please contact the manufacturer Carbon (Xiamen) New Material directly.
Related Product
PA66-CF5: 5% Carbon Fiber R...
Flame Retardant PA66-CF The...
Durable PA66-CF60 carbon fi...
PA66 CF20 Industrial-Grade ...
PA66 CF20 Black PA66-CF-BCA...
Competitive Price Nylon 66 ...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
