Granulated ABS CF40 as Additive Manufacturing Raw Materials
1. 110MPa tensile strength -22% stronger than ABS CF30.
2. 40% carbon fiber content – enhances structural rigidity.
3. 125℃ HDT -42% higher heat resistance vs standard ABS.
4. 2kg/h extrusion rate -50% faster than filament printing.
5. <15% anisotropy – superior isotropic performance.
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free samples: ≤10kg
- MOQ: 100kg
- Port: Xiamen
- Model: ABS-CF-BCA4
- Fillers: SCF

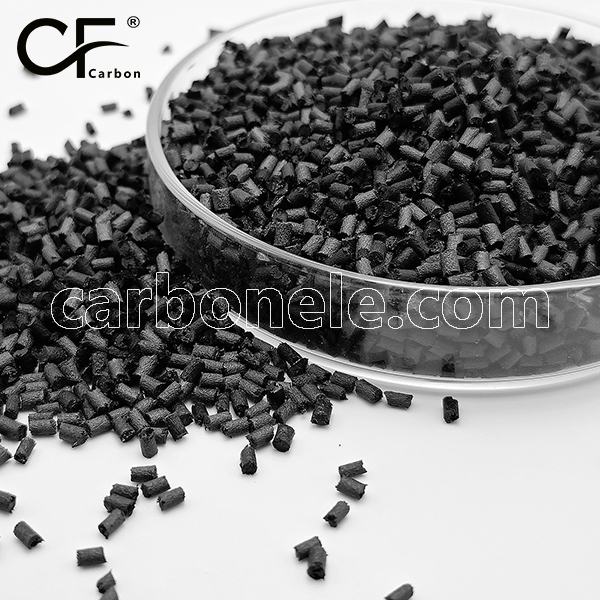

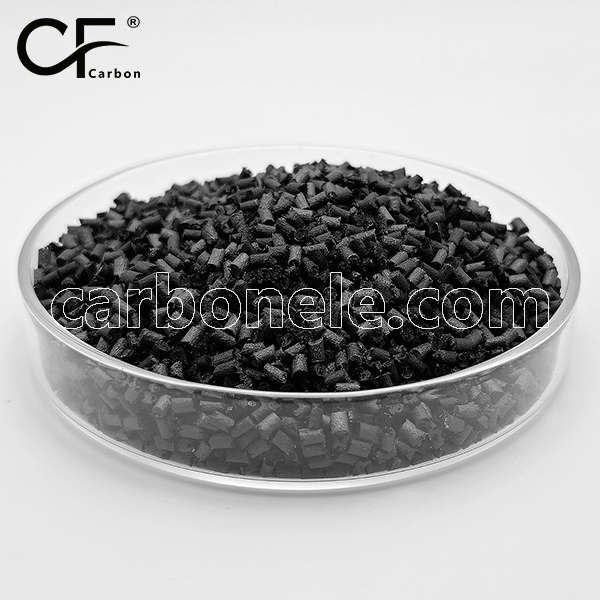

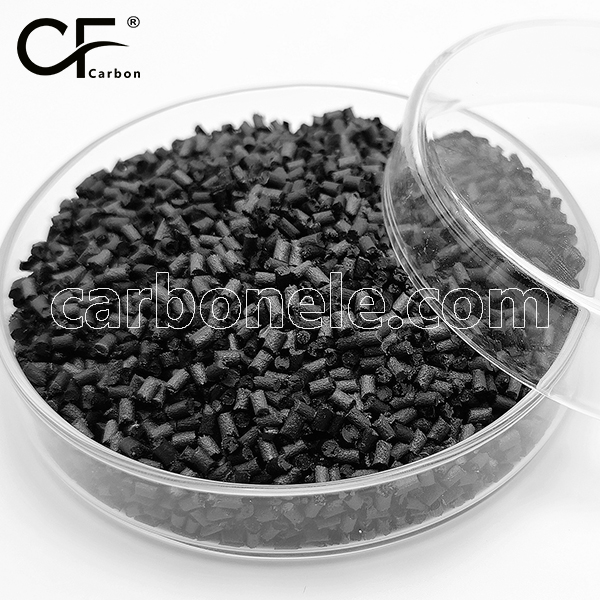

Introduction to Granulated ABS CF40 Composite
Granulated ABS CF40 is a high-performance pelletized material specifically developed for additive manufacturing, composed of an ABS resin matrix reinforced with 40% carbon fiber. Its optimized granule morphology (2-5mm) is designed for fused deposition modeling (FDM) and high-flow extrusion processes, combining exceptional mechanical properties with processing stability.
Compatibility with Additive Manufacturing Processes and Performance Advantages
-
Industrial-Grade FDM Printing
With 40% carbon fiber content and tensile strength reaching 110MPa (22% higher than ABS CF30), it is particularly suitable for printing high-strength aerospace components. -
High-Speed Melt Extrusion
Enhanced rheological properties enable extrusion rates up to 2kg/h (50% faster than traditional filaments), meeting rapid prototyping needs for large-scale equipment. -
Ultra-Low Thermal Deformation
A heat deflection temperature (HDT@1.82MPa) of 125°C (42% higher than standard ABS) ensures dimensional stability in high-temperature environments. -
Isotropic Reinforcement
Controlled carbon fiber orientation achieves <15% XY/Z-axis strength variation (vs. >30% in conventional CF materials), significantly improving reliability in complex structures.
Through its high fiber content and innovative granule design, this material perfectly meets additive manufacturing’s core demands for high strength, efficiency, and isotropy, with proven applications in automotive tooling and drone wing production.
Surface Resistivity Comparison
Conductors < 10⁵ Ω/sq. Antistatic Materials 10⁵ ~ 10¹² Ω/sq. Insulators > 10¹² Ω/sq. Static-Dissipative 10⁶ ~ 10¹¹ Ω/sq. *Key Influencing Factors Humidity: Increased moisture can reduce resistivity (e.g., in polymers). Temperature: Affects carrier mobility (↑ heat may lower semiconductor resistivity). Surface Contamination: Dust/oils alter readings significantly. Additives: Carbon black, metallic fillers can lower resistivity. *Applications Electronics: Antistatic materials (10⁶–10⁹ Ω/sq) prevent electrostatic discharge (ESD). Aerospace: Composites must control resistivity to avoid charge buildup. Medical Devices: Insulating materials (>10¹² Ω/sq) ensure patient safety. *Examples Polypropylene (PP): ~10¹⁶ Ω/sq (excellent insulator). Carbon Fiber Composites: 10³–10⁶ Ω/sq (static dissipation). ESD Flooring: 10⁶–10⁹ Ω/sq.
Get to Know Carbon Fibers
The table presents key performance data of carbon fiber grades. T300, with a tensile strength of 3530 MPa and a tensile modulus of 230 GPa, has a relatively low tensile elongation at break of 1.5% and a body density of 1.76 g/cm³. As the grade increases, for example, T700S shows an enhanced tensile strength of 4900 MPa compared to T300, while maintaining the same tensile modulus but with a higher elongation at break of 2.1%. T800S and T1000G both have a tensile modulus of 294 GPa, and their tensile strengths are 5880 MPa and 6370 MPa respectively. T1100G stands out with the highest tensile strength of 7000 MPa and a tensile modulus of 324 GPa. Generally, with the increase in product grade, the tensile strength and modulus tend to rise, while the density remains relatively stable around 1.8 g/cm³.
How to Buy?
If you want to obtain information such as product specifications, performance, and price, choose a suitable product according to your own needs. Meanwhile, you can ask the manufacturer to provide samples for testing to ensure that the material meets your usage requirements. If you are interested in purchasing this composite material, please contact the manufacturer Carbon (Xiamen) New Material directly.
