High-performance TPU-LCF20 thermoplastics
TPU-LCF20 is a fiber-reinforced thermoplastic elastomer that combines the flexibility of TPU with 20% long carbon fiber for enhanced strength, stiffness, and fatigue resistance. Ideal for semi-structural parts requiring both resilience and mechanical durability under dynamic loads.
- Model number: TPU-LCF-BCA2
- Matrix Resin: Thermoplastic polyurethane (TPU)
- Reinforcing Filler: Carbon fiber

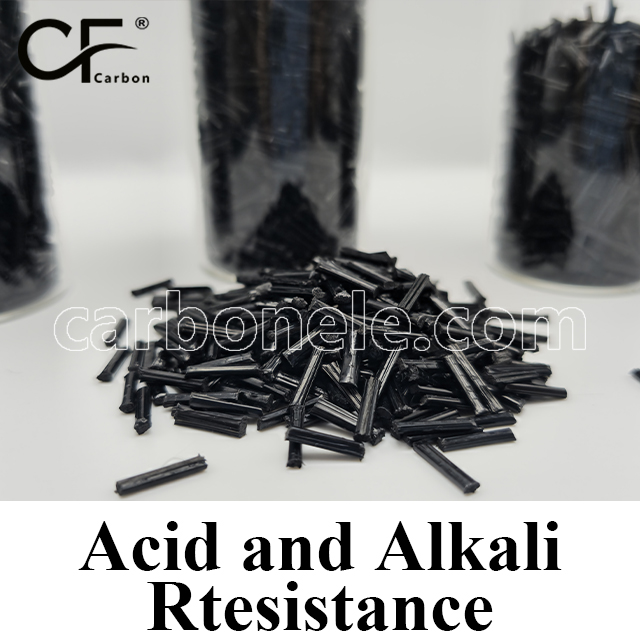

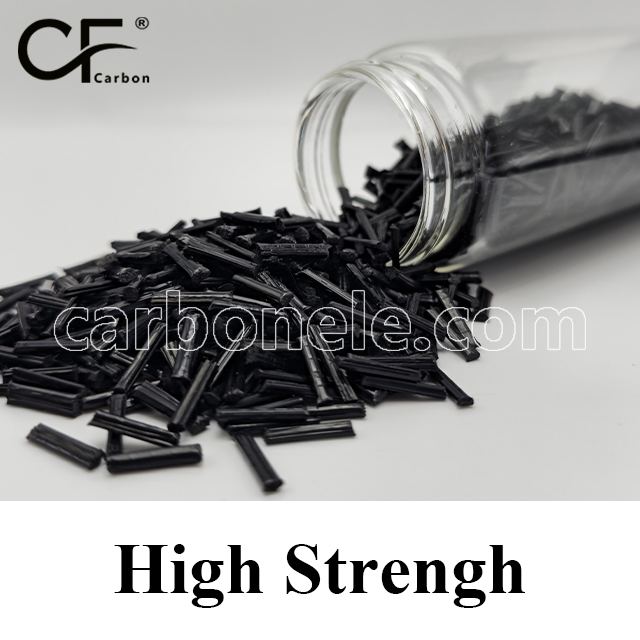

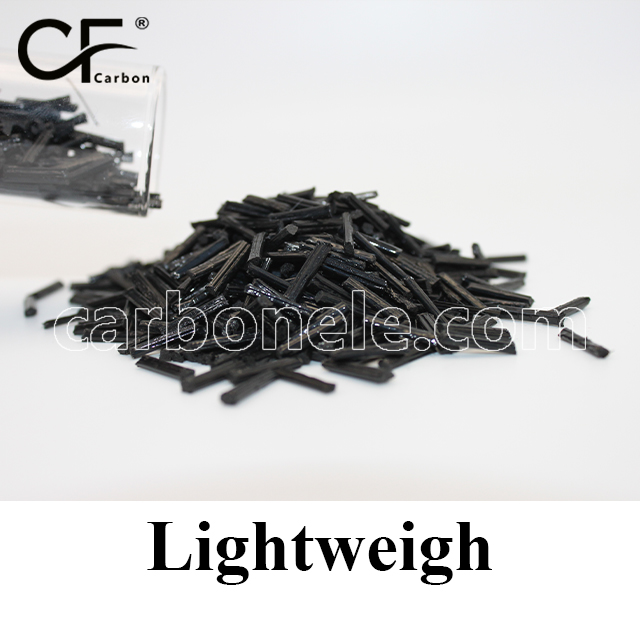

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
TPU-LCF20 | 20% Long Carbon Fiber Reinforced Thermoplastic Polyurethane
TPU-LCF20 is a performance-engineered thermoplastic elastomer that incorporates 20% long carbon fiber reinforcement into a durable TPU matrix. This increased fiber loading significantly enhances tensile strength, stiffness, and dimensional stability, while retaining the elastomeric flexibility and abrasion resistance that TPU is known for.
With twice the fiber content of TPU-LCF10, TPU-LCF20 offers improved load transfer, reduced creep, and superior resistance to fatigue and mechanical deformation—especially in parts subject to dynamic stress, vibration, or repeated flexing. The long fiber reinforcement enables semi structural behavior without sacrificing shock absorption and resilience.
Designed for more demanding applications where mechanical strength and energy return must coexist, TPU-LCF20 is ideal for hybrid structural flexible components in automotive systems, industrial assemblies, robotic linkages, and wear-resistant flexible protection gear.
Core Performance Highlights
Mechanical Properties

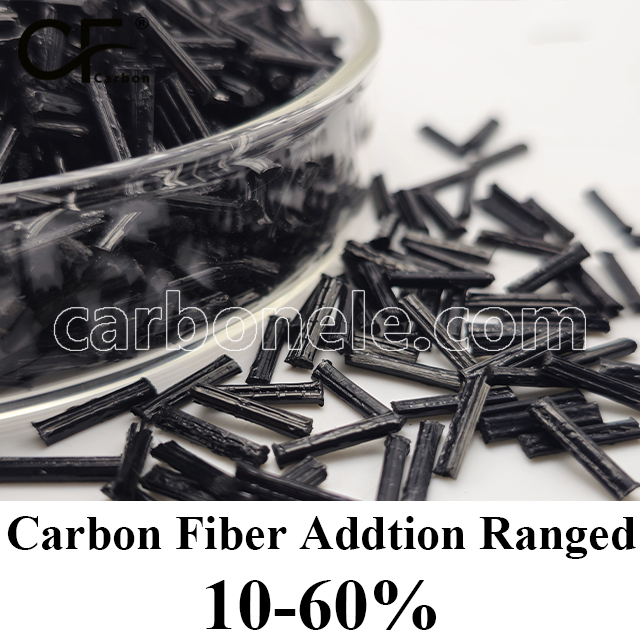

Carbon Fiber Content: 20% (Long Carbon Fiber, aligned for optimal strength and fatigue life)
Tensile Strength: ≥ 60 MPa
Elongation at Break: ≥ 80%
Shore Hardness: ~96A
→ Excellent balance of rigidity and elasticity for use in vibration prone mechanical environments.
Thermal Resistance
Heat Deflection Temperature (HDT): ~100 °C
Continuous Use Temperature: Up to 90 °C
→ Performs reliably in thermally active zones near engines or motors.
Environmental & Chemical Durability
Moisture Absorption: Low — retains shape and strength in humid or submerged settings
Chemical Resistance: Excellent — withstands oils, fuels, greases, and most industrial solvents
→ Withstands chemical exposure in harsh automotive and industrial environments.
Processing & Manufacturing
Molding Methods: Injection molding, extrusion, and long fiber capable 3D printing
Surface Finish: Matte with visible fiber texture depending on flow and orientation
Tooling Considerations: Hardened steel tools and optimized flow channels recommended for fiber alignment and mold longevity
→ Supports efficient production with improved performance in end use parts.
Target Applications
Automotive & Mobility Systems
Dynamic covers, flex rigid brackets, underhood isolators
→ Stronger than TPU-LCF10, ideal for parts near heat sources or experiencing load cycling.
Industrial Equipment
Abrasion resistant joints, semi rigid couplings, vibration isolating connectors
→ Extends service life in mechanically and thermally active environments.
Robotics & Automation
Motion joints, flex structured arms, sensor mounts
→ Combines structural strength with controlled motion and fatigue resistance.
Wearables & Protection Systems
Impact dispersing inserts, semi rigid exo shells
→ Enables lightweight yet tough components for gear used in rugged or repetitive conditions.
Performance Summary Table
| Property | Value / Description |
|---|---|
| Carbon Fiber Content | 20% (Long Carbon Fiber) |
| Tensile Strength | ≥ 60 MPa |
| Elongation at Break | ≥ 80% |
| Shore Hardness | ~96A |
| Heat Deflection Temp. | ~100 °C |
| Long Term Service Temp. | Up to 90 °C |
| Water Absorption | Low — maintains dimensional integrity when humid/wet |
| Chemical Resistance | Excellent — resists common fuels, oils, and solvents |
| Wear Resistance | Very high — suitable for repeated mechanical motion |
| Processing Methods | Injection molding, extrusion, LCF-compatible 3D printing |
| Surface Finish | Matte with visible carbon pattern depending on geometry |
| Dimensional Stability | Superior — suitable for semi-structural flexible parts |
Friction coefficient of PA12-LCF
The friction coefficient of TPU is typically between 0.3 and 0.5, while TPU-CF, with added carbon fiber, lowers the friction coefficient to between 0.2 and 0.4. The smaller the value, the better the wear resistance. Therefore, TPU-CF generally offers better wear resistance than pure TPU, especially under high-load conditions.
