PPS-CF30 is a high performance, carbon fiber reinforced thermoplastic offering exceptional strength, thermal stability, and chemical resistance. With 30% carbon fiber content, it delivers outstanding stiffness and dimensional accuracy, making it an ideal metal replacement for demanding structural applications in high-heat and chemically aggressive environments.
Low Moisture Absorption PPS-CF30
- Model number: PPS-CFB-CA3
- Matrix Resin: Polyphenylene Sulfide (PPS)
- Reinforcing Filler: Carbon fiber

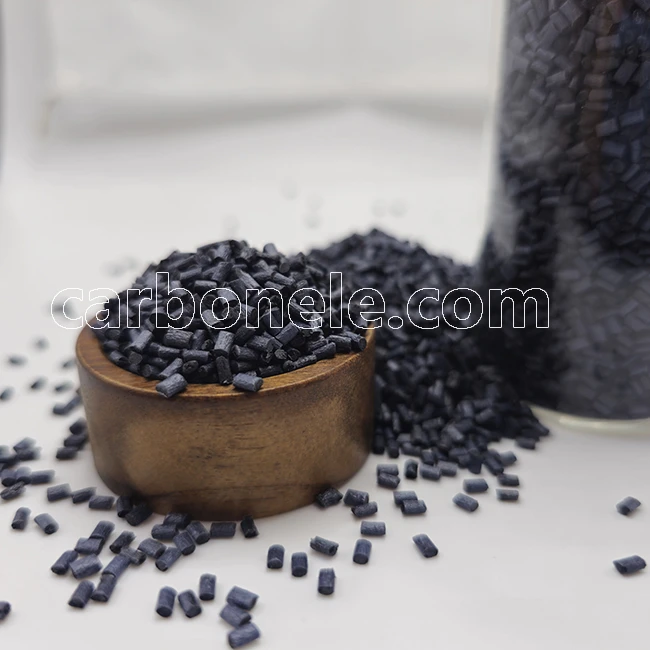

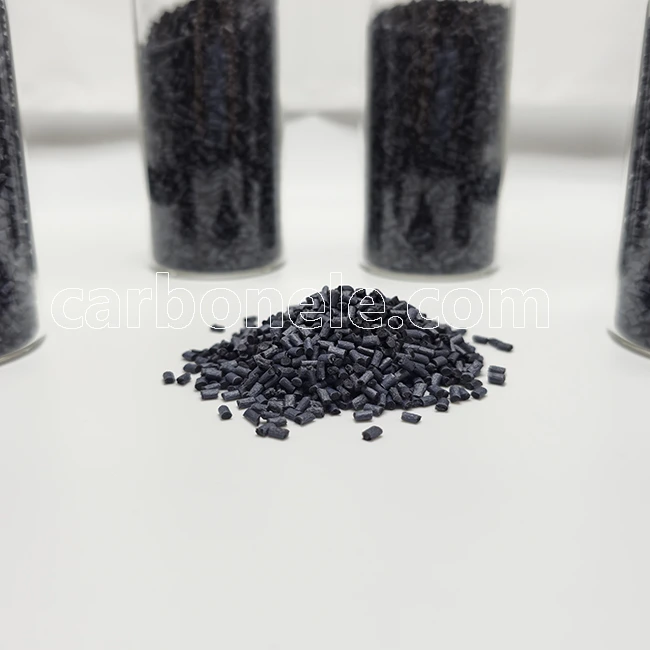

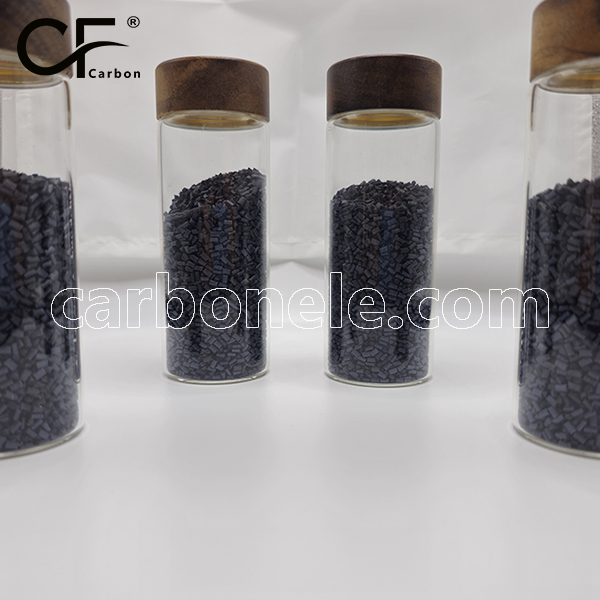

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PPS-CF30 | 30% Carbon Fiber Reinforced Polyphenylene Sulfide
PPS-CF30 is a high performance, semi-crystalline thermoplastic composite reinforced with 30% carbon fiber, engineered for structural stability, thermal endurance, and chemical resistance in the most demanding environments. This formulation balances stiffness and strength with excellent dimensional stability and thermal tolerance, making it a premier choice for replacing metals in high-precision, high-temperature applications.
Compared to unfilled PPS or lower fiber filled grades, PPS-CF30 delivers significantly enhanced mechanical properties, including elevated tensile strength, flexural modulus, and creep resistance—without compromising its excellent resistance to chemicals and thermal degradation. The result is a material capable of long-term performance under static or dynamic loads in chemically aggressive and high heat conditions.
PPS-CF30 is especially well suited for applications across automotive, electronics, aerospace, and industrial sectors that demand lightweight, thermally stable materials capable of handling heat, stress, and harsh environments.
Core Performance Highlights
Mechanical Properties
Carbon Fiber Content: 30% (short to medium carbon fiber, randomly oriented)
Tensile Strength: ≥ 140 MPa
Flexural Modulus: ~10 GPa
Elongation at Break: ~1.5%
Notched Izod Impact: ~50 J/m
→ Excellent rigidity and strength with minimal deformation under stress.
Thermal Resistance
Heat Deflection Temperature (HDT): ≥ 260 °C
Continuous Use Temperature: Up to 220 °C
→ Maintains structural integrity and precision in high heat environments without warping or degrading.
Environmental & Chemical Durability
Moisture Absorption: <0.1% — virtually unaffected by humidity
Chemical Resistance: Outstanding — resistant to fuels, oils, solvents, acids, bases
→ Performs reliably in chemically aggressive, humid, or submerged conditions.
Processing & Manufacturing
Molding Methods: Injection molding, compression molding
Surface Finish: Semi gloss to matte with fine carbon texture
Tooling Considerations: Requires high temperature capable tooling; wear resistant steel molds recommended
→ Suitable for high volume, precision applications with demanding dimensional tolerances.
Target Applications
Automotive & Mobility
Connectors, pump housings, under hood brackets, transmission components
→ Replaces metals and thermosets where thermal cycling, vibration, and chemical exposure occur.
Industrial & Fluid Systems
Chemical pump parts, valve bodies, sensor housings, mechanical seals
→ Withstands caustic chemicals, mechanical load, and thermal cycling with minimal dimensional shift.
Electronics & Electrical Systems
High temperature insulators, E/E connectors, PCB component carriers
→ Excellent dielectric stability, low outgassing, and thermal performance for precision electronic assemblies.
Aerospace & Defense
Sensor enclosures, lightweight brackets, structural insulators
→ Delivers high performance in weight sensitive, thermally extreme, and chemically harsh conditions.
Performance Summary Table
| Property | Value / Description |
|---|---|
| Carbon Fiber Content | 30% (Carbon Fiber Reinforced) |
| Tensile Strength | ≥ 140 MPa |
| Flexural Modulus | ~10 GPa |
| Elongation at Break | ~1.5% |
| Notched Izod Impact | ~50 J/m |
| Heat Deflection Temp. | ≥ 260 °C |
| Long Term Service Temp. | Up to 220 °C |
| Moisture Absorption | <0.1% — highly dimensionally stable |
| Chemical Resistance | Excellent — resistant to fuels, oils, acids, bases, solvents |
| Wear Resistance | High — suited for friction and structural parts |
| Processing Methods | Injection molding, compression molding |
| Surface Finish | Fine textured, semi-gloss to matte with carbon pattern |
| Dimensional Stability | Exceptional — retains tight tolerances under combined stresses |
If you want to get more information about PPS-CF30, you can visit our Youtube.
Friction coefficient of PPS-CF
The friction coefficient of PPS (Polyphenylene Sulfide) typically ranges from 0.3 to 0.45, while PPS-CF (Carbon Fiber Reinforced Polyphenylene Sulfide) has a lower coefficient, generally between 0.2 and 0.35. The addition of carbon fiber improves hardness, wear resistance, and reduces friction, making PPS-CF more suitable for high-load, high-temperature, and high-friction applications.
Related Product
High-Strength PPS-CF60 Comp...
High Stiffness Carbon Fiber...
Pinnacle High-Strength PPS-...
The Pinnacle of High-Streng...
High Wear Resistant PPS-CF-...
High Strength Talc Filled P...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
