Cost-effective PA6&PA66 CF15 for 3D Printed Filaments
1. 130MPa tensile strength ensures structural integrity
2. 190°C heat resistance maintains thermal stability
3. 0.6% low shrinkage enables precision printing
4. 7GPa flexural modulus provides rigidity
5. Ra<3.2μm surface roughness ensures smooth finish
- Manufacturer: Carbon New Material
- OEM/ODM: Acceptable
- Color: Black
- Free samples: ≤10kg
- MOQ: 100kg
- Port: Xiamen
- Model: PA6&PA66-CF-BCA25
- Fillers: SCF
Product Overview

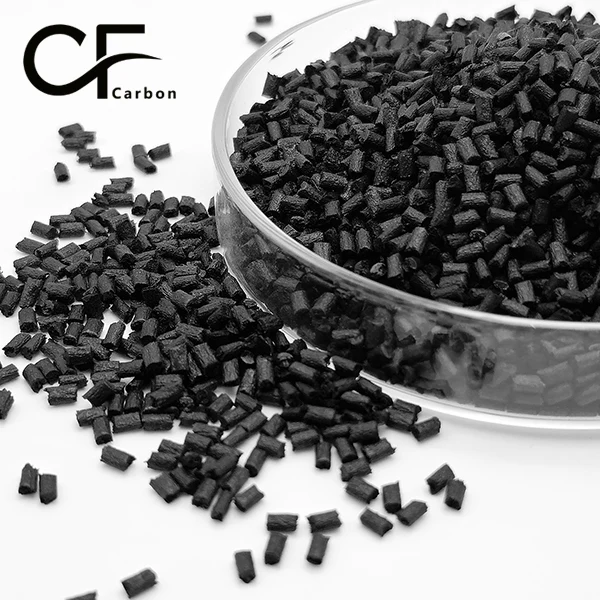

Cost-effective PA6&PA66 CF15 is an economical carbon fiber reinforced composite specially developed for 3D printing. It uses an optimized PA6 and PA66 blended matrix with 15% carbon fiber addition, significantly enhancing mechanical properties and thermal stability while ensuring printing accuracy.
Core Performance Features of 3D Printed Filaments
1: Excellent Printing Adaptability Printing shrinkage rate only 0.6%-1.0%, interlayer bonding strength reaches 35MPa, ensuring forming accuracy for complex structured 3D Printed Filaments.
2: Balanced Mechanical Properties Tensile strength 130MPa, flexural modulus 7GPa, providing reliable mechanical support for functional 3D Printed Filaments.
3: Good Thermal Stability Heat deflection temperature 190°C, glass transition temperature 65°C, ensuring dimensional stability of 3D Printed Filaments in high-temperature environments.
4: Outstanding Surface Quality Surface roughness Ra＜3.2μm, warpage deformation＜0.8%, giving 3D Printed Filaments excellent finished appearance.
Main Application Fields
PA6&PA66 CF15 material is particularly suitable for manufacturing functional prototypes, mechanical parts, tooling fixtures and other industrial-grade 3D Printed Filaments, meeting various industry requirements for durability and precision.
Application Case of 3D Printed Filaments
An automotive R&D center used PA6&PA66 CF15 material to print engine bracket prototypes, achieving 30% weight reduction and 40% strength improvement. The products maintained excellent performance at 120°C test environment, fully demonstrating the value of these 3D Printed Filaments in rapid prototyping.
Surface Resistivity Comparison
Conductors < 10⁵ Ω/sq. Antistatic Materials 10⁵ ~ 10¹² Ω/sq. Insulators > 10¹² Ω/sq. Static-Dissipative 10⁶ ~ 10¹¹ Ω/sq. *Key Influencing Factors Humidity: Increased moisture can reduce resistivity (e.g., in polymers). Temperature: Affects carrier mobility (↑ heat may lower semiconductor resistivity). Surface Contamination: Dust/oils alter readings significantly. Additives: Carbon black, metallic fillers can lower resistivity. *Applications Electronics: Antistatic materials (10⁶–10⁹ Ω/sq) prevent electrostatic discharge (ESD). Aerospace: Composites must control resistivity to avoid charge buildup. Medical Devices: Insulating materials (>10¹² Ω/sq) ensure patient safety. *Examples Polypropylene (PP): ~10¹⁶ Ω/sq (excellent insulator). Carbon Fiber Composites: 10³–10⁶ Ω/sq (static dissipation). ESD Flooring: 10⁶–10⁹ Ω/sq.
Get to Know Carbon Fibers
The table presents key performance data of carbon fiber grades. T300, with a tensile strength of 3530 MPa and a tensile modulus of 230 GPa, has a relatively low tensile elongation at break of 1.5% and a body density of 1.76 g/cm³. As the grade increases, for example, T700S shows an enhanced tensile strength of 4900 MPa compared to T300, while maintaining the same tensile modulus but with a higher elongation at break of 2.1%. T800S and T1000G both have a tensile modulus of 294 GPa, and their tensile strengths are 5880 MPa and 6370 MPa respectively. T1100G stands out with the highest tensile strength of 7000 MPa and a tensile modulus of 324 GPa. Generally, with the increase in product grade, the tensile strength and modulus tend to rise, while the density remains relatively stable around 1.8 g/cm³.
How to Buy?
If you want to obtain information such as product specifications, performance, and price, choose a suitable product according to your own needs. Meanwhile, you can ask the manufacturer to provide samples for testing to ensure that the material meets your usage requirements. If you are interested in purchasing this composite material, please contact the manufacturer Carbon (Xiamen) New Material directly.
Related Product
FR V Nylon Alloy CF PA66�...
PA66-CF20 Carbon Fiber Plas...
Self-lubricating PA6&P...
PA66-CF33 Raw Materials PA6...
33% Carbon Fiber Reinforced...
PA66-CF5: 5% Carbon Fiber R...
Frequently Asked Questions
Carbon (Xiamen) New Material Co., Ltd. aims to provide buyers with "one-stop" worry-free high-quality services. Here you can find all information about carbon fiber engineering plastics. If you still have questions, please send us an email for consultation!
-
How can I contact the manufacturer of a product that interests me?
When you find a product you are interested in, you can contact the manufacturer directly by sending an email and we will get back to you as soon as possible.
-
How do I find the products that interest me?
All you need to do is enter the keyword, product name in the search window and press the Enter key on your keyboard. Your search results page will then be displayed. You can also search within the product category pages on the home page. Each category is divided into subcategories, allowing you to refine your search and find products that interest you.
-
Where will I find a buying guide?
Please contact our after-sales service directly and we will provide you with a comprehensive operating guide.
-
What are CF Reinforced Thermoplastic Composites?
CF Reinforced Thermoplastic Composites are materials where carbon fibers are incorporated into a thermoplastic matrix. They combine the strength and stiffness of carbon fibers with the processability and recyclability of thermoplastics. For instance, they are used in automotive parts like bumper beams.
-
What are the benefits of CF Reinforced Thermoplastic Composites over traditional composites?
The key benefits include faster production cycles, easier recyclability, and better impact resistance. They also offer design flexibility. An example is in the manufacturing of consumer electronics casings where complex shapes can be achieved more easily.
-
How are CF Reinforced Thermoplastic Composites processed?
Common processing methods include injection molding, extrusion, and compression molding. Injection molding is widely used for mass production. For example, in the production of small components for the medical industry.
-
What industries use CF Reinforced Thermoplastic Composites?
They are utilized in aerospace, automotive, medical, and sports equipment industries. In aerospace, they can be found in interior components. In the medical field, they might be used in prosthetics.
-
How does the carbon fiber content affect the properties of the composites?
Higher carbon fiber content generally leads to increased strength and stiffness but may reduce ductility. A moderate content is often balanced for specific applications. For example, a higher content might be preferred in structural parts of a race car.
-
What are the challenges in using CF Reinforced Thermoplastic Composites?
Challenges include higher material costs, complex processing equipment requirements, and ensuring uniform fiber dispersion. Issues with adhesion between the fibers and the matrix can also arise. An example is in achieving consistent quality in large-scale production.
