PEEK CF10 Composite for High-Pressure Tubing Applications
PEEK CF10 is a high-performance polyether ether ketone composite reinforced with 10% carbon fiber, delivering superior mechanical strength, thermal stability and chemical resistance – perfect for precision components requiring exceptional durability in extreme operating conditions.
- Model number: PEEK-CF-BCA1
- Matrix Resin: Polyether ether ketone (PEEK)
- Reinforcing Filler: Carbon fiber (10%)

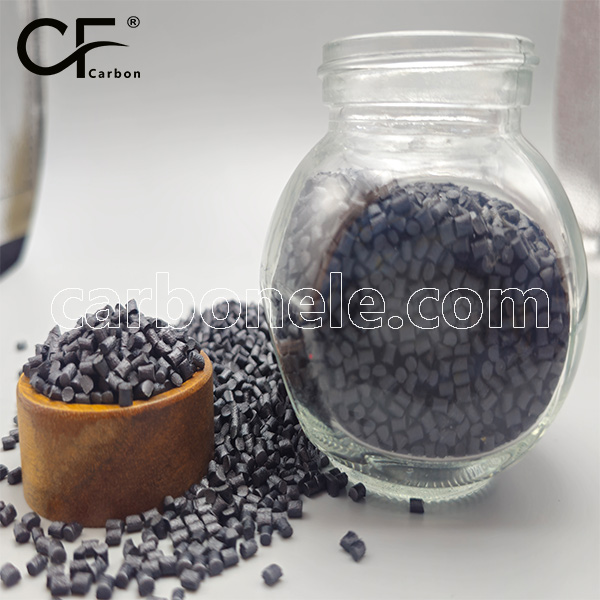

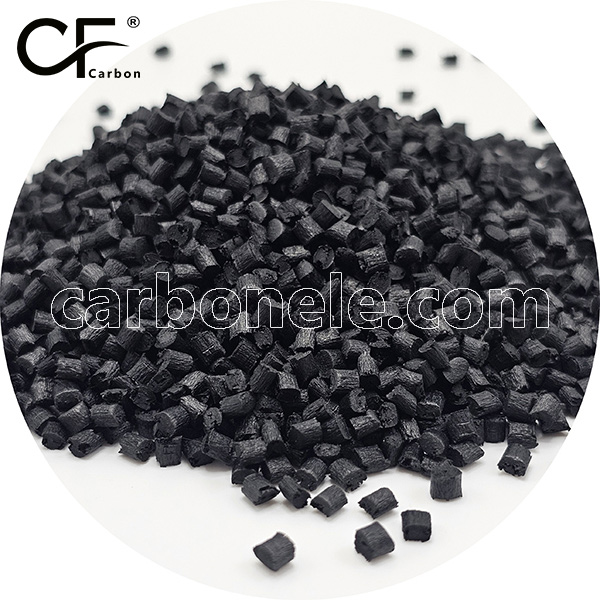

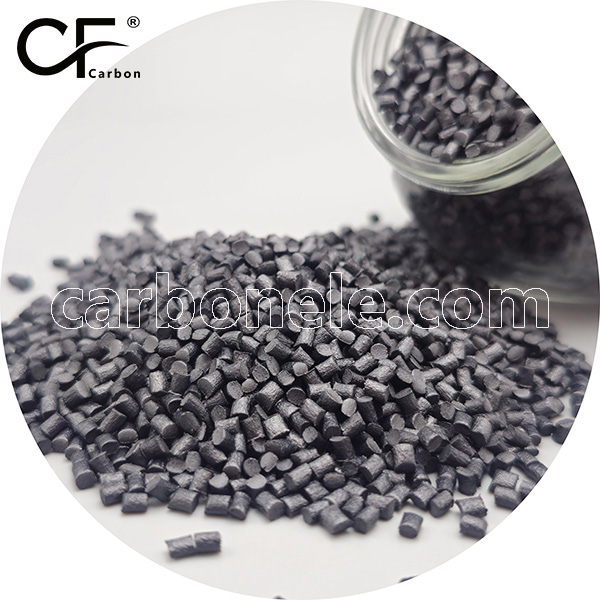

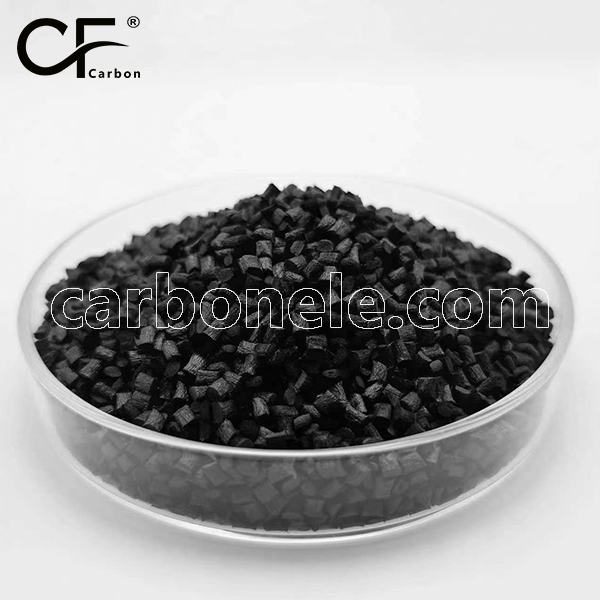

- Appearance: Granules
- Packaging: 25kg/bag
PEEK CF10 | 10% Carbon Fiber Reinforced Polyether Ether Ketone
Introduction
PEEK CF10 is a 10% carbon fiber reinforced PEEK composite offering superior thermal/chemical resistance with enhanced mechanical properties.
It maintains excellent processability while providing optimal stiffness and dimensional stability for precision engineering applications.
Core Performance Highlights
1.Mechanical Properties
*Carbon Fiber Content: 10% (short carbon fiber)
*Tensile Strength: ≥ 150 MPa
*Flexural Modulus: ~8–10 GPa
*Elongation at Break: ~3–5%
*Shore Hardness: ~85D
2.Thermal Resistance
*Heat Deflection Temperature (HDT): ~315°C
*Continuous Use Temperature: Up to 260°C
3.Environmental & Chemical Durability
*Moisture Absorption: <0.1% – negligible effect on performance
*Chemical Resistance: Excellent – resists acids, bases, solvents, and hydrocarbons
4.Processing & Manufacturing
*Molding Methods: Injection molding, extrusion, machining
*Surface Finish: Smooth to lightly textured
*Tooling Requirements: Standard steel molds with moderate wear resistance
Target Applications
1.Aerospace & Defense
Engine components, bushings, and structural brackets
→ Lightweight alternative to metals with superior thermal stability.
2.Medical & Healthcare
Surgical instruments, implantable device components
→ Biocompatible and sterilizable (autoclave, gamma radiation).
3.Industrial & Oil & Gas
Seals, bearings, pump components
→ Withstands aggressive chemicals and high-pressure environments.
4.Electronics & Semiconductor
Insulating components, wafer carriers
→ Excellent electrical insulation and thermal stability.
What are the advantages of PEEK CF10?
Advantages of PEEK CF10: 260°C+ continuous heat resistance, enhanced rigidity (50% stronger than PPS-CF10), and superior chemical resistance - perfect for ultra-demanding applications in aerospace, medical and energy sectors.
