PPA-CF5 is a high performance engineering plastic reinforced with 5% carbon fiber, offering excellent mechanical strength, chemical resistance, and thermal stability. Its tensile strength is ≥ 120 MPa, and it is suitable for medium loads and harsh environments. Its excellent dimensional stability and low water absorption make it suitable for injection molding and extrusion processing.
PPA-CF5 High Temperature Environments
- Model number: PPA-CF-BCA05
- Matrix Resin: Personal Package Archive (PPA)
- Reinforcing Filler: Carbon fiber

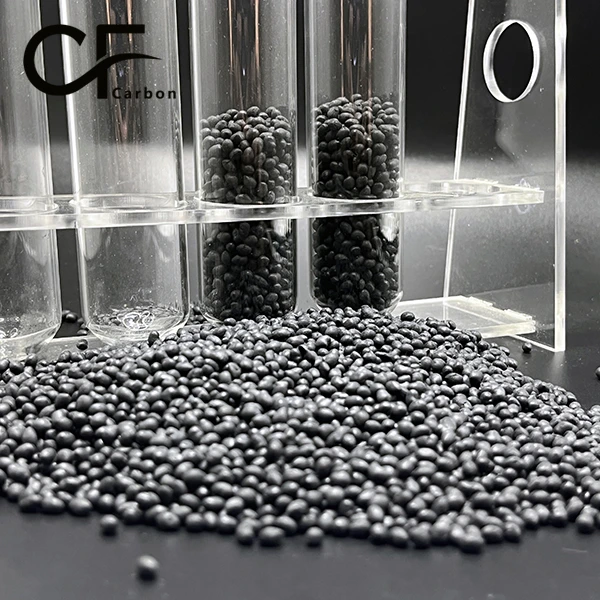

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PPA-CF5 | 5% Carbon Fiber Reinforced Polyphthalamide
PPA-CF5 is a high performance, semi-crystalline engineering thermoplastic reinforced with 5% short carbon fiber, offering enhanced stiffness, dimensional stability, and thermal resistance compared to unfilled PPA. Designed for use in automotive, electronics, and industrial components, PPA-CF5 delivers lightweight mechanical performance with improved warpage control, creep resistance, and surface finish, all while retaining PPA’s inherent chemical and thermal durability.
PPA-CF5 provides a balanced solution for cost sensitive applications where moderate reinforcement, high precision, and good flowability are essential.
Core Performance Highlights
Mechanical Properties
Carbon Fiber Content: 5% (short chopped fibers, evenly dispersed)
Tensile Strength: ~95–105 MPa
Flexural Modulus: ~6–7 GPa
Elongation at Break: ~2.0–2.5%
Notched Izod Impact: ~60–70 J/m
→ The addition of 5% carbon fiber provides noticeable gains in stiffness and strength over neat PPA, while maintaining ductility and a high quality surface finish.
Thermal Resistance
Heat Deflection Temperature (HDT): ≥ 240 °C
Continuous Use Temperature: Up to 200 °C
→ Suitable for elevated temperature environments such as engine compartments, electronics housings, or industrial enclosures.
Environmental & Chemical Durability
Moisture Absorption: ~0.15–0.25% — significantly lower than standard PA6/PA66
Chemical Resistance: Excellent — resistant to automotive fluids, oils, fuels, and industrial chemicals
→ Maintains dimensional stability and mechanical properties in humid, hot, or chemically aggressive environments.
Processing & Manufacturing
Molding Methods: Injection molding (standard or high flow grades available)
Surface Finish: Smooth to semi gloss, with minimal fiber visibility
Tooling Requirements: Compatible with standard hardened steel molds, with low tool wear compared to higher CF grades
→ PPA-CF5 processes easily with good flow, fast cycle times, and low warpage, making it ideal for thin wall, complex, or high precision parts.
Target Applications
Automotive & Mobility
Sensor housings, fuel connectors, under hood electrical components
→ Delivers thermal resistance and chemical stability for non structural engine bay parts.
Electronics & Electrical
Connector bodies, coil bobbins, switch housings
→ Ensures mechanical integrity and dimensional accuracy under thermal cycling and load.
Industrial Systems
Small pump housings, actuator parts, control unit covers
→ Combines mechanical reinforcement with good moldability for medium performance technical parts.
Performance Summary Table
| Property | Value / Description |
|---|---|
| Carbon Fiber Content | 5% (Short Carbon Fiber Reinforced) |
| Tensile Strength | ~95–105 MPa |
| Flexural Modulus | ~6–7 GPa |
| Elongation at Break | ~2.0–2.5% |
| Notched Izod Impact | ~60–70 J/m |
| Heat Deflection Temp. | ≥ 240 °C |
| Long Term Service Temp. | Up to 200 °C |
| Moisture Absorption | ~0.15–0.25% — lower than standard PA |
| Chemical Resistance | Excellent — oils, fuels, coolants, solvents |
| Wear Resistance | Moderate — suitable for lightly loaded moving parts |
| Processing Methods | Injection molding |
| Surface Finish | Smooth to semi-gloss, low fiber exposure |
| Dimensional Stability | High — low warpage, good creep resistance |
If you want to get more information about PPA-CF5, you can visit our Youtube.
Strength between PPA and PPA-CF
PPA-CF (carbon fiber reinforced) offers significantly higher mechanical strength and rigidity compared to standard PPA. The addition of carbon fiber enhances tensile strength, flexural strength, and wear resistance, making PPA-CF more suitable for heavy loads and extreme environments. While standard PPA is suitable for medium-load and conventional applications, PPA-CF provides superior performance for more demanding industrial conditions.
