PPA-LCF10 is a high performance polyphthalamide reinforced with 10% long carbon fibers, offering improved impact resistance, fatigue durability, and moderate stiffness (~6–7 GPa). With good thermal stability (HDT ~260 °C) and excellent chemical resistance, it’s ideal for structural parts under dynamic loads or vibration.
PPA-LCF10 High Mechanical Strength
- Model number: PPA-LCF-BCA1
- Matrix Resin: Personal Package Archive (PPA)
- Reinforcing Filler: Carbon fiber

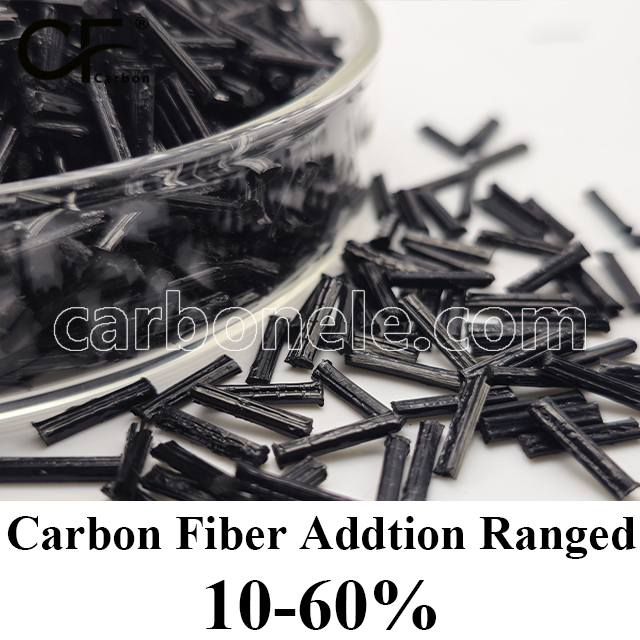

- Appearance: Granules
- Grade: Injection/extrusion grade
- Packaging: 25kgs/bag
PPA-LCF10 | 10% Long Carbon Fiber Reinforced Polyphthalamide
PPA-LCF10 is a high performance, semi-crystalline engineering thermoplastic reinforced with 10% long carbon fibers. Engineered to balance mechanical strength with improved toughness and impact resistance, this material offers enhanced fiber matrix load transfer due to the continuous nature of the long fibers.
Compared to short fiber reinforced grades (like PPA-CF30 or CF50), the long fiber structure in PPA-LCF10 improves impact resistance, fatigue performance, and energy absorption while maintaining good stiffness and dimensional stability. It is ideal for structural parts requiring durability, moderate stiffness, and crack resistance under repeated mechanical or thermal loading.
Core Performance Highlights
Mechanical Properties
Carbon Fiber Content: 10% (long carbon fibers)
Tensile Strength: ~95–110 MPa
Flexural Modulus: ~6–7 GPa
Elongation at Break: ~1.5–2.5%
Notched Izod Impact: ~60–80 J/m
Long fiber reinforcement improves impact toughness and fatigue resistance, making it suitable for dynamic and vibration sensitive structures.

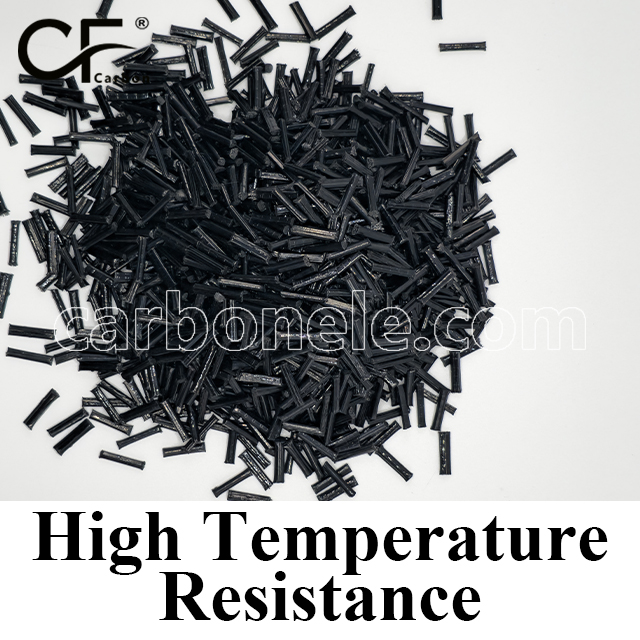

Thermal Resistance
Heat Deflection Temperature (HDT): ~250–260 °C
Continuous Use Temperature: Up to 220 °C
Offers stable thermal performance in moderately high temperature environments without significant loss of mechanical integrity.
Environmental & Chemical Durability
Moisture Absorption: ~0.08–0.12% — low enough for controlled dimensional behavior
Chemical Resistance: Excellent — resists automotive fluids, coolants, oils, acids, and bases
Performs reliably in chemically aggressive environments while maintaining dimensional accuracy and mechanical strength.
Processing & Manufacturing
Molding Method: Injection molding (with long fiber feedstock or pultrusion)
Surface Finish: Matte with possible visible fiber pattern
Tooling Requirements: High strength tooling preferred to handle potential abrasion from long fibers
Processing Notes: Requires shear controlled flow to preserve fiber length and ensure maximum performance.
Target Applications
Automotive & Mobility
Instrument panel reinforcements, brackets, battery trays
Long fiber structure offers strength and resilience for components exposed to vibration and fatigue.
Electronics & Electrical
Structural parts in connectors, motor housings, and frames
Good strength and dimensional control under moderate heat and chemical exposure.
Industrial Equipment
Covers, housings, and non load bearing support components
Improved durability over short fiber materials for repeated use and mechanical cycling.
Performance Summary Table
| Property | Value / Description |
|---|---|
| Carbon Fiber Content | 10% (Long Carbon Fiber Reinforced) |
| Tensile Strength | ~95–110 MPa |
| Flexural Modulus | ~6–7 GPa |
| Elongation at Break | ~1.5–2.5% |
| Notched Izod Impact | ~60–80 J/m |
| Heat Deflection Temp. | ~250–260 °C |
| Continuous Use Temp. | Up to 220 °C |
| Moisture Absorption | ~0.08–0.12% — low, maintains shape and tolerance |
| Chemical Resistance | Excellent — oils, fuels, acids, bases, solvents |
| Wear Resistance | Moderate — improved over neat resin |
| Processing Method | Injection molding with long fiber compatibility |
| Surface Finish | Matte — may show fiber pattern |

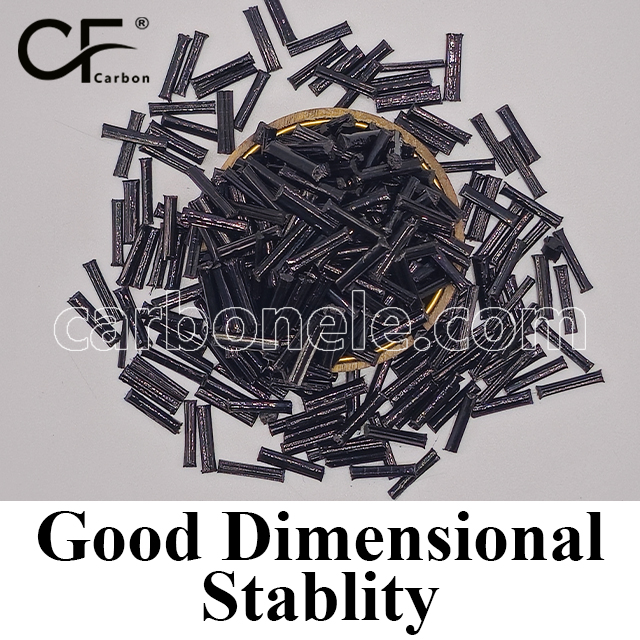

| Dimensional Stability | High — with good fatigue and impact durability |
If you want to get more information about PPA-LCF10, you can visit our Youtube.
Strength between PPA and PPA-CF
PPA-CF (carbon fiber reinforced) offers significantly higher mechanical strength and rigidity compared to standard PPA. The addition of carbon fiber enhances tensile strength, flexural strength, and wear resistance, making PPA-CF more suitable for heavy loads and extreme environments. While standard PPA is suitable for medium-load and conventional applications, PPA-CF provides superior performance for more demanding industrial conditions.
